CNC Lantern Deburring Tools Machining Hole Cleaning For Hard Burrs Finishing Steel Wire Brushes

CNC Lantern Deburring Tools Machining Hole Cleaning For Hard Burrs Finishing Steel Wire Brushes

⭕Features:
1--High grinding power
Deburring Lantern Brush have a higher cutting rate than standard pipe brushes and can handle relatively hard burrs. They also have a longer lifespan than standard pipe brushes.

2--Durable & Cost-effective
Constructed of stainless steel wire and a high-grade alloy steel handle, they are durable and sturdy.

3--Unique design
Due to their contoured structure, they are ideal for irregularly shaped parts and are a prime choice for cross-hole applications.

Enjoy VEYER Cases

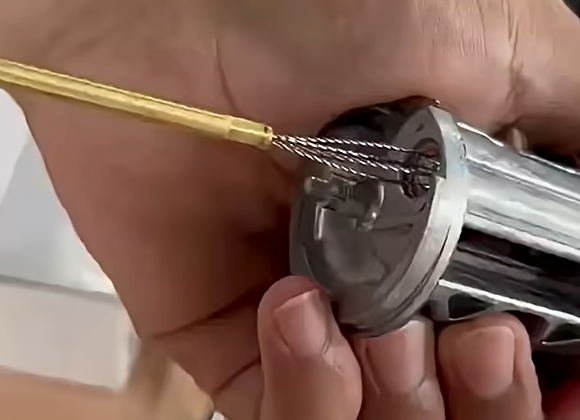

Case 1 :Removal of larger and harder burrs at cross holes in stainless steel
Tool Used: VEYER Deburring Lantern Brush
Brush dia：10.5mm
RPM: 800min
Process Time: 6 sec

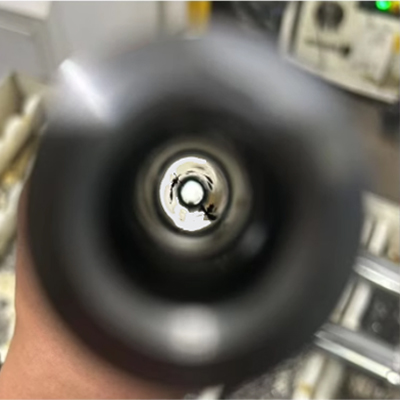

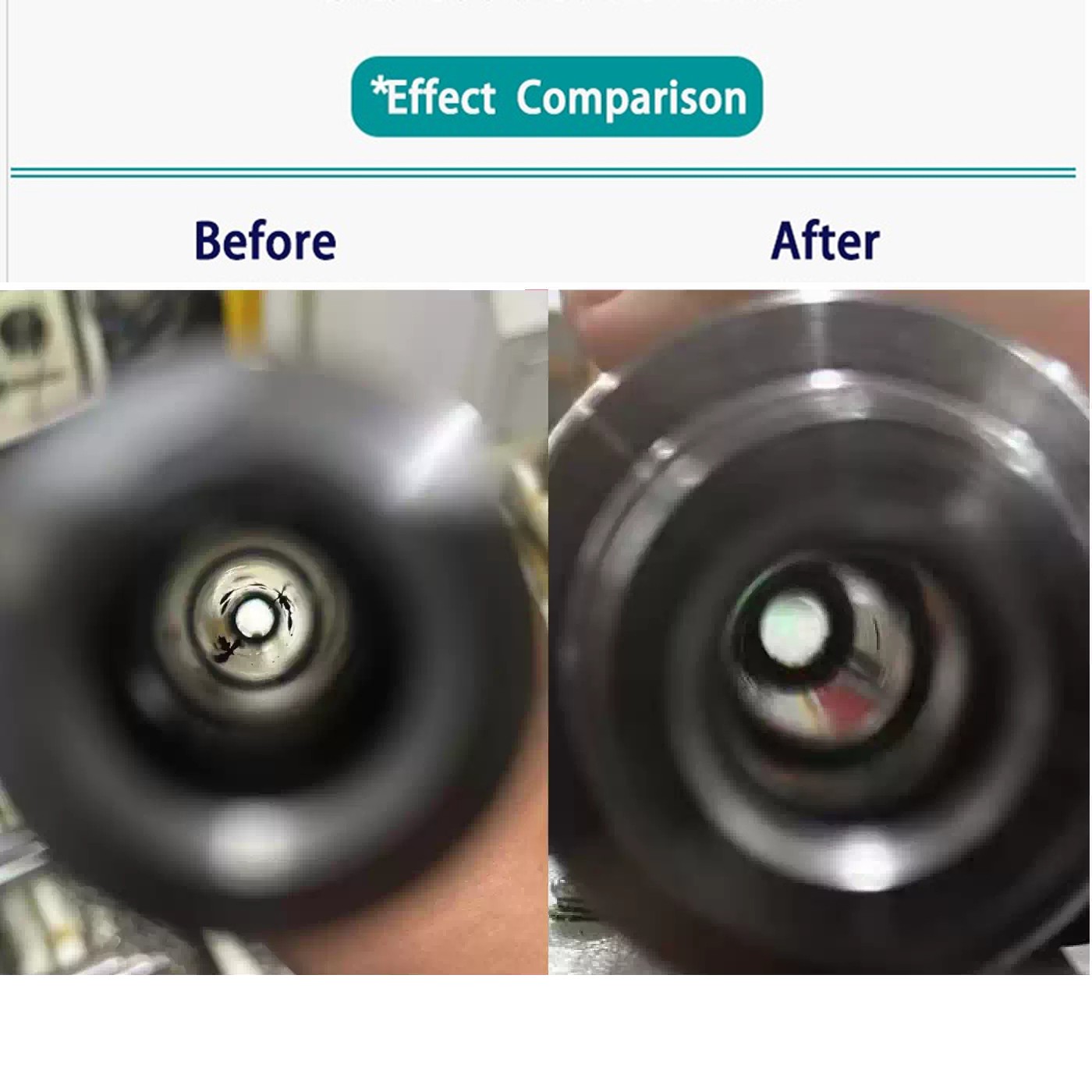

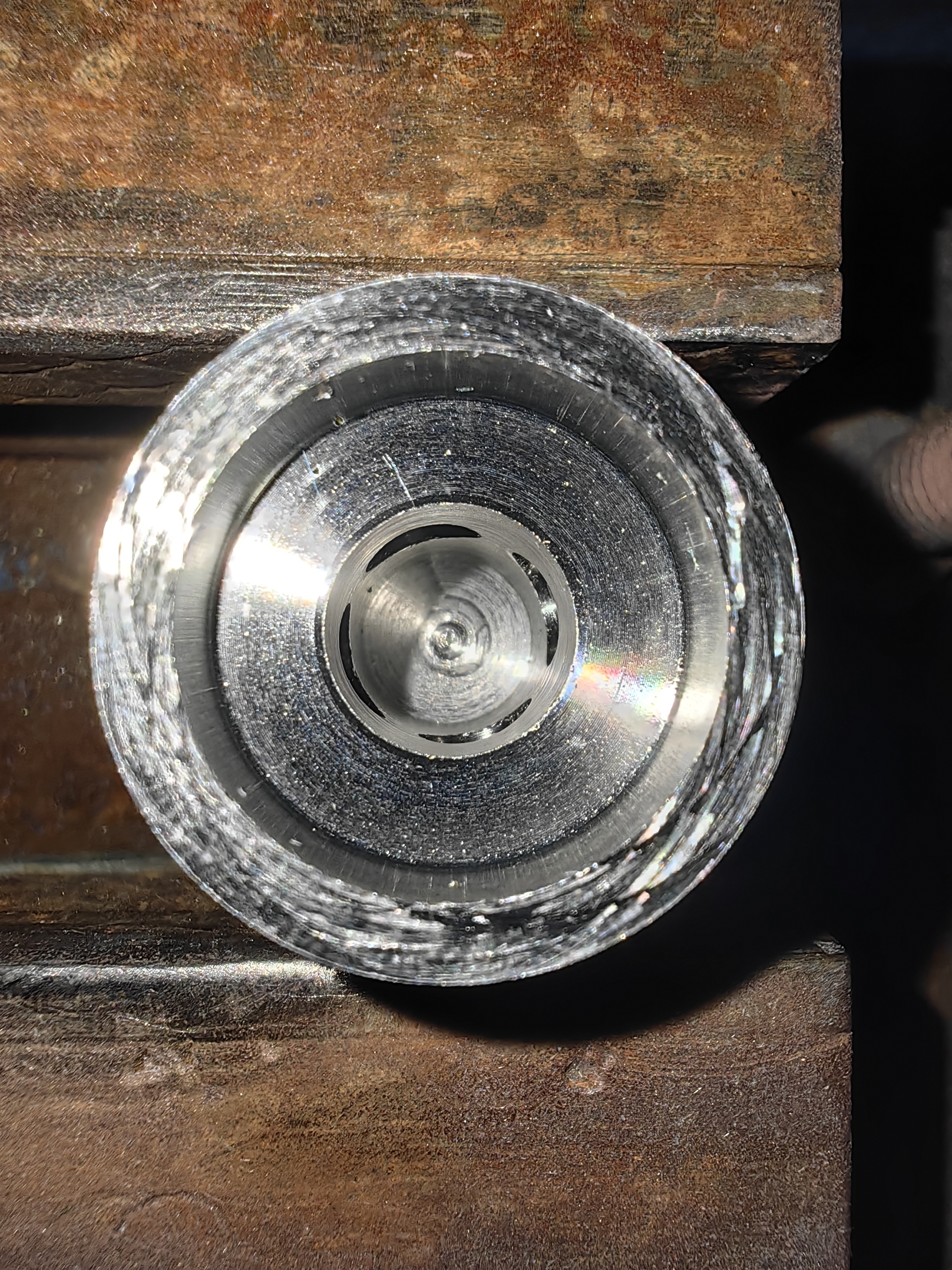

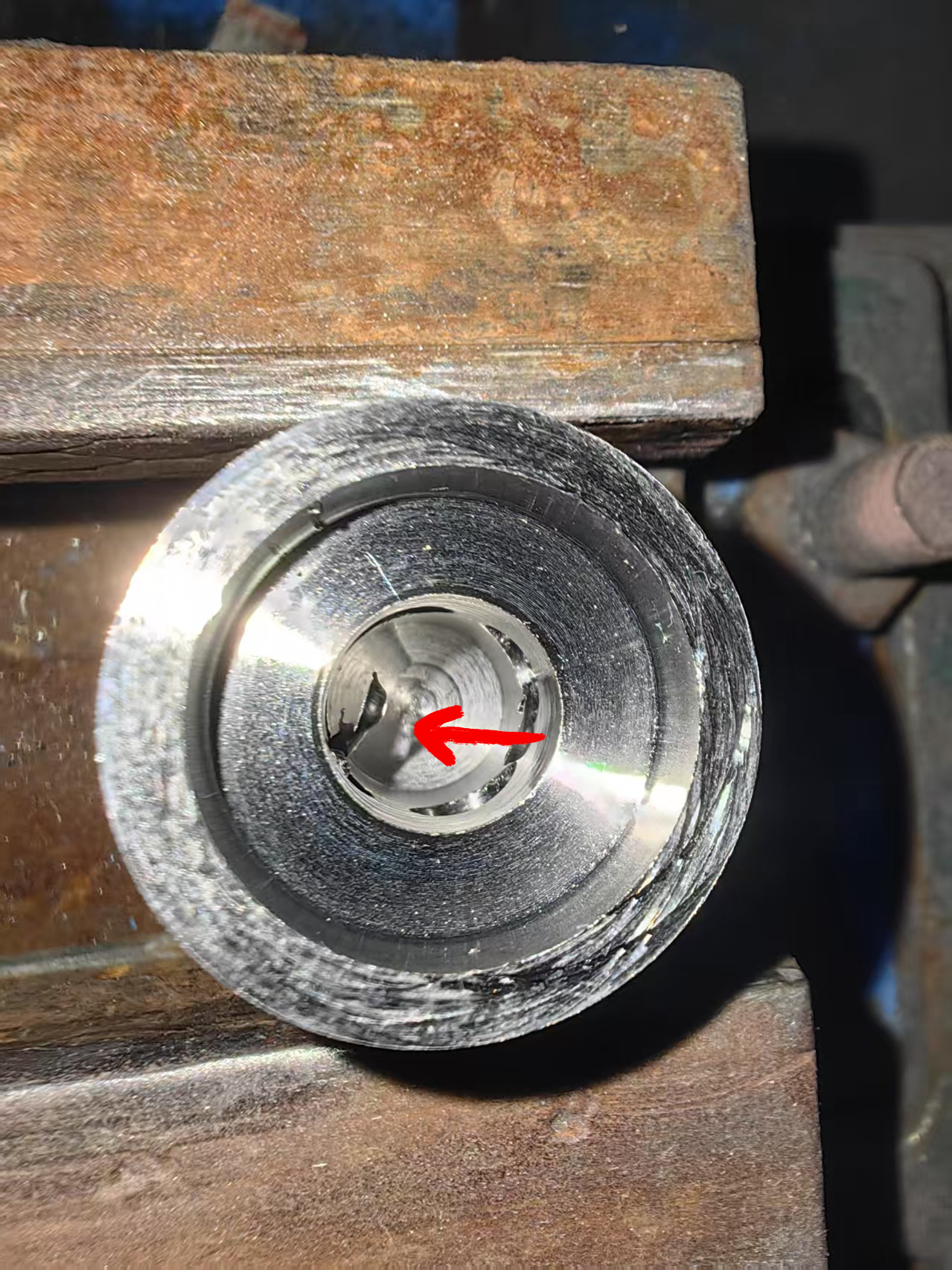

Unprocessed part: The cross hole had large burrs, hindering subsequent processing.

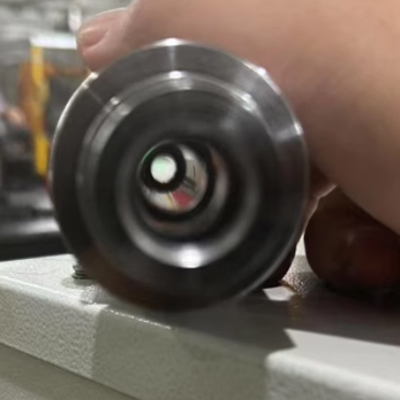

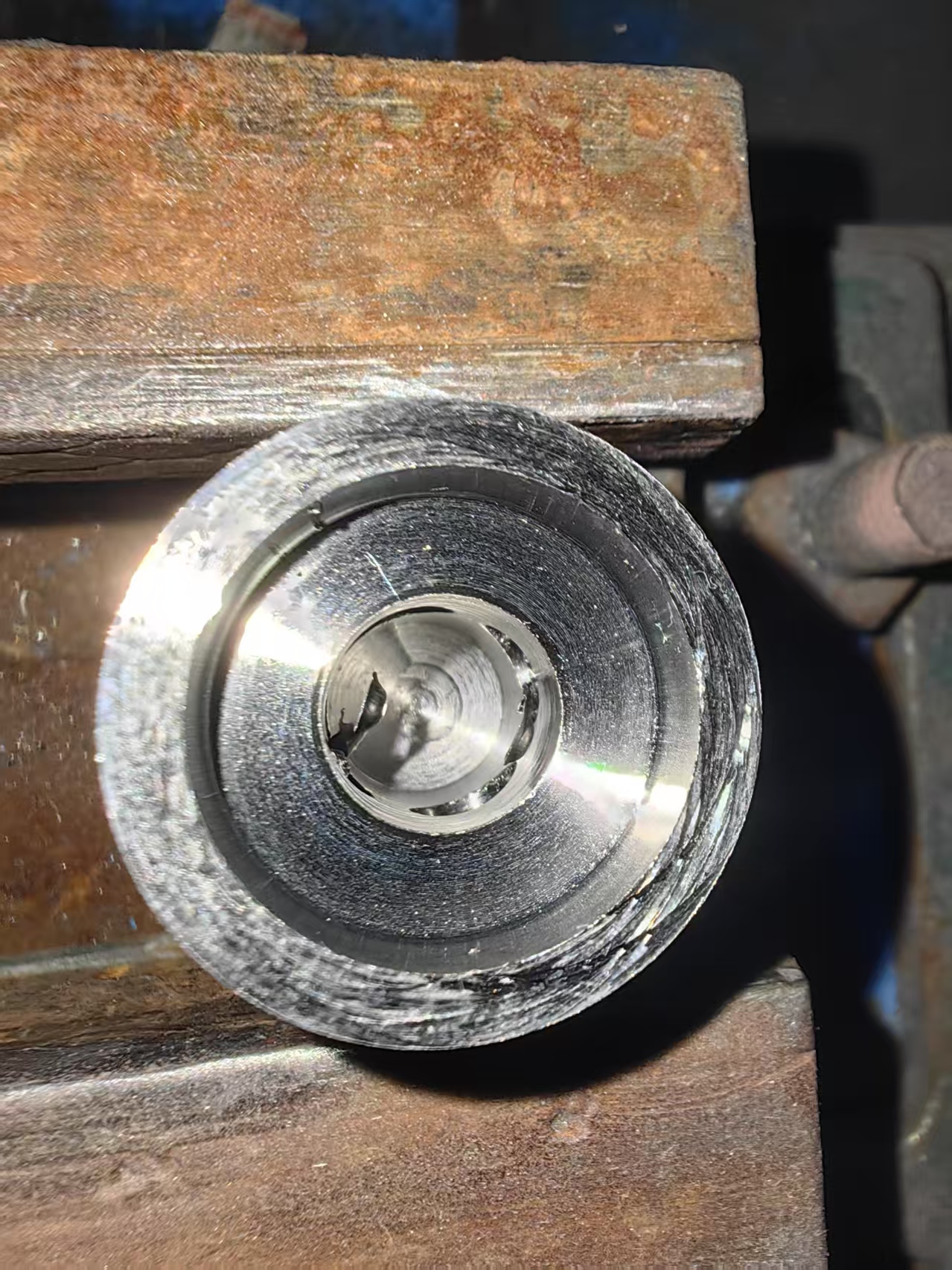

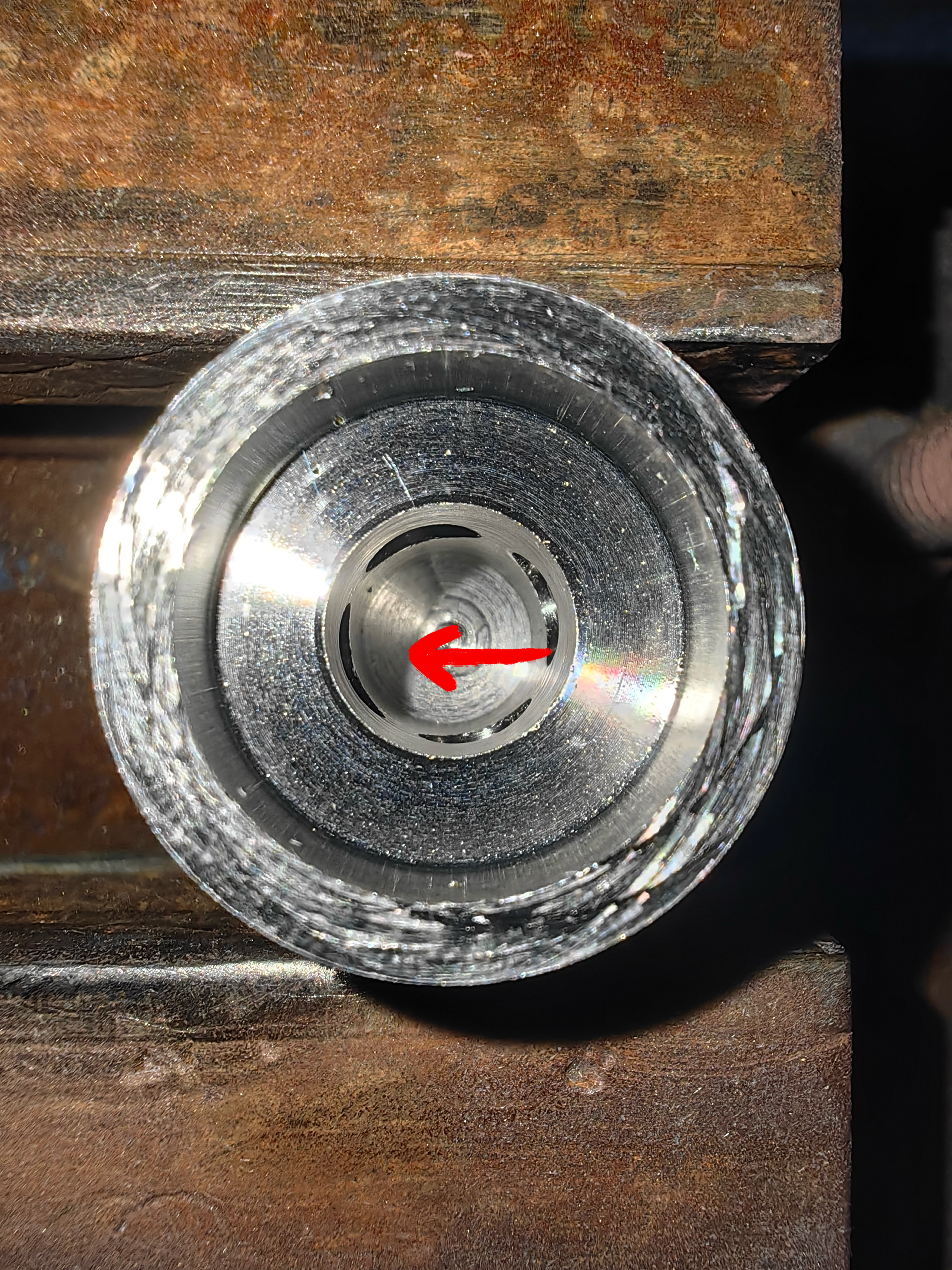

Processed part: The cross hole had all burrs removed, resulting in a smooth and flat surface.

Best Effect

Functions

VEYER deburring lantern brushes are suitable for removing burrs inside holes, deburring cross-holes, removing burrs from flanges, and cleaning blind holes. They improve the roughness and flatness of holes inside and across metal parts. These brushes are excellent deburring tools, perfect for you.

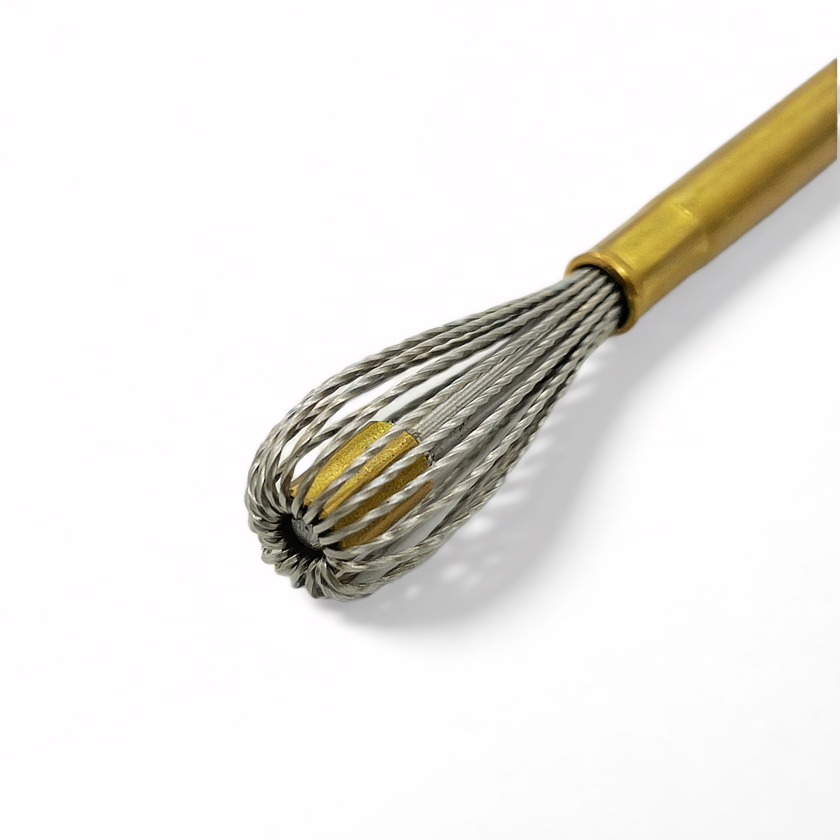

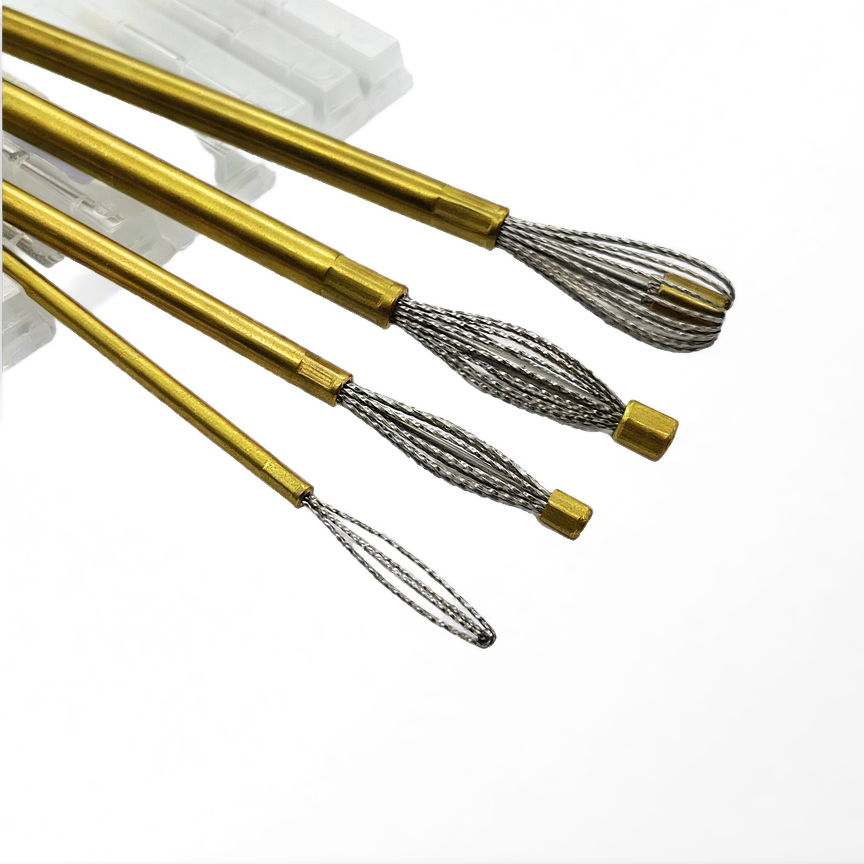

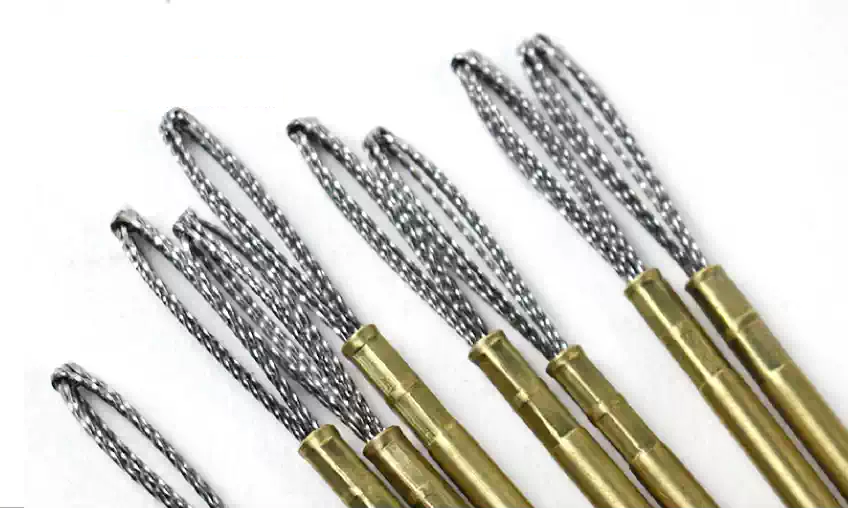

The VEYER CNC Deburring Lantern Brush are made of evenly Stainless steel filaments.

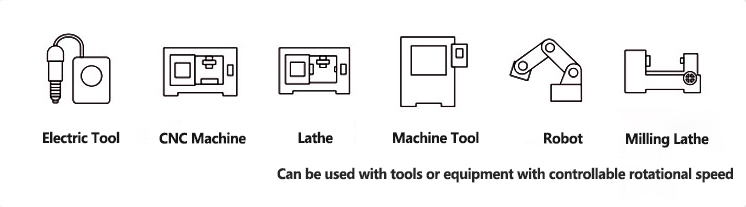

When rotating, the centrifugal force of the brush head generates a powerful grinding force without damaging the shape or size of the hole. Ideal for CNC machining centers, milling machines, drilling machines, automated machine tools, robotic arms, hand power drills, etc. It primarily removes burrs from internal holes, crosshole burrs after drilling, and improves the roughness of metal parts' internal holes...... It is suitable for grinding harder burrs.

Features

1---High grinding power
Deburring Lantern Brush have a higher cutting rate than standard pipe brushes and can handle relatively hard burrs. They also have a longer lifespan than standard pipe brushes.
2---Durable & Cost-effective
Constructed of stainless steel wire and a high-grade alloy steel handle, they are durable and sturdy.
3---Unique design
Due to their contoured structure, they are ideal for use on irregularly shaped parts and are a prime choice for cross-hole applications.

VEYER CNC Lantern deburring brushes for cnc machines are great for robotics deburring, without damage for metal parts when grinding. The hole finishing effects are great, reaching very smooth and shiny.
Commonly used in aluminum alloys, copper, magnesium alloy... with small burrs below 0.2mm.

How to use

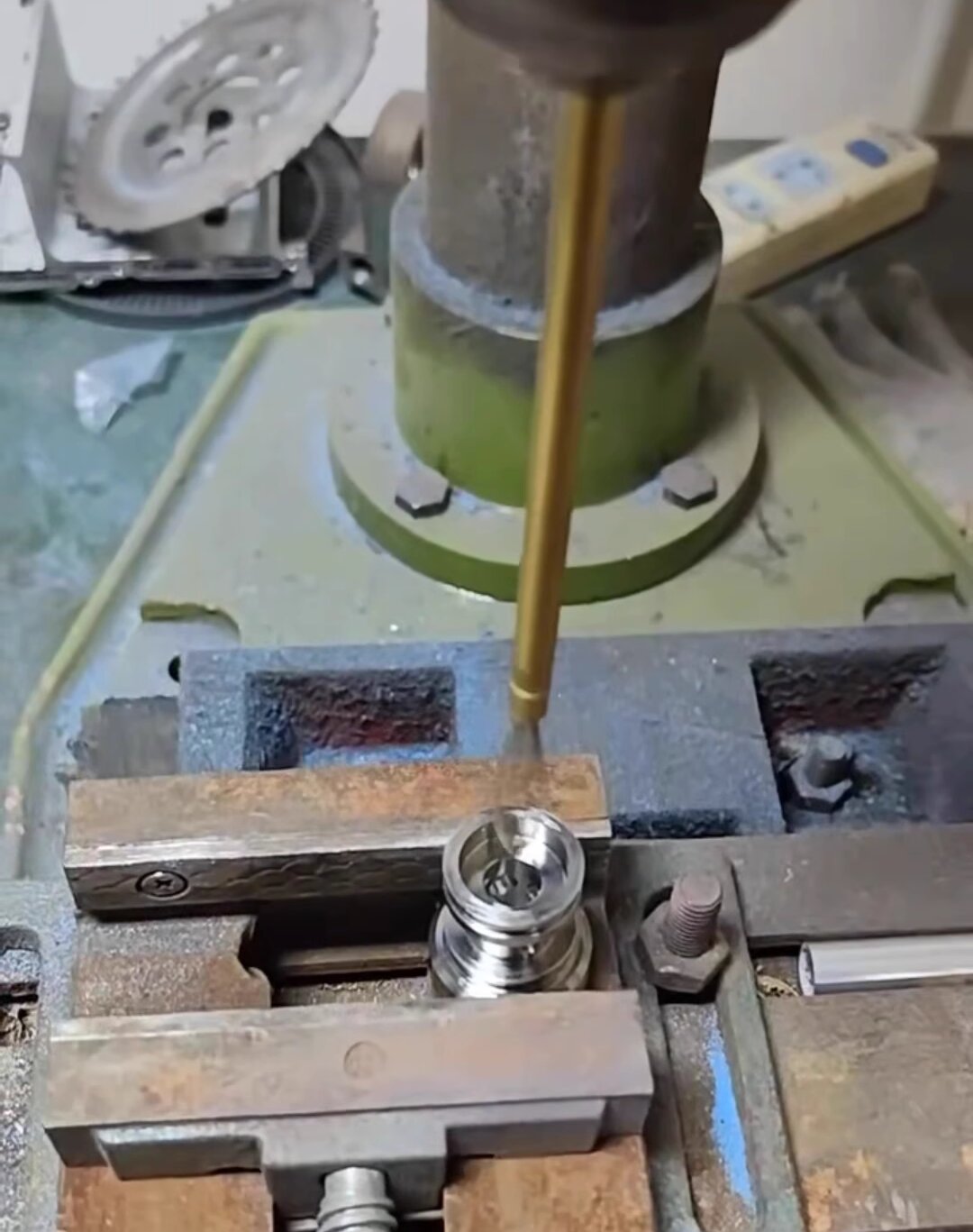

1. Clamp the brush handle to the machine spindle;
2. The machine tool is programmed to set the speed, feed, cutting amount, etc.;

3. Make the brush head contact the grinding surface, and walk the stroke and reciprocate grinding on the surface.

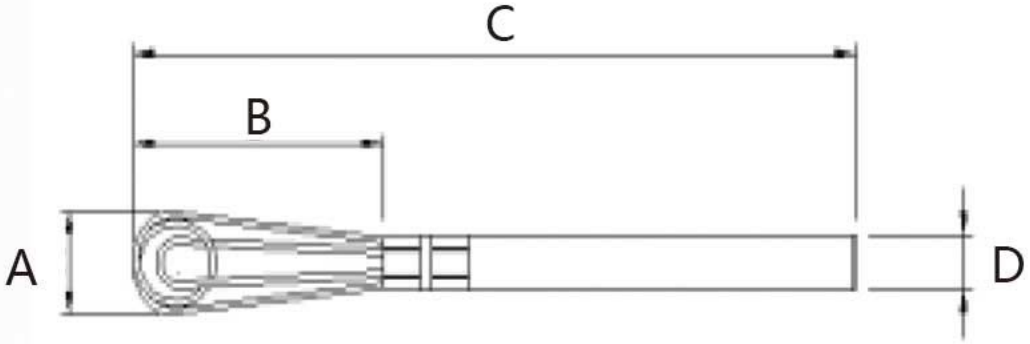

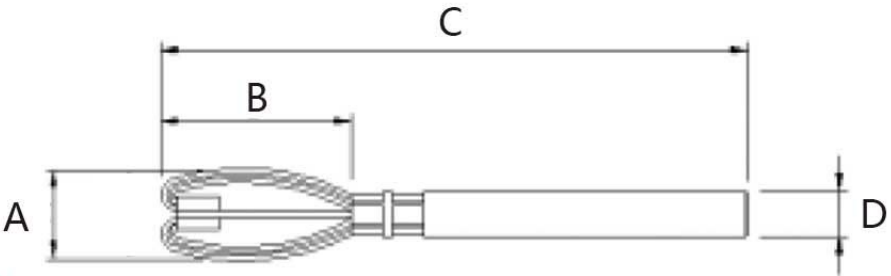

Dimensions

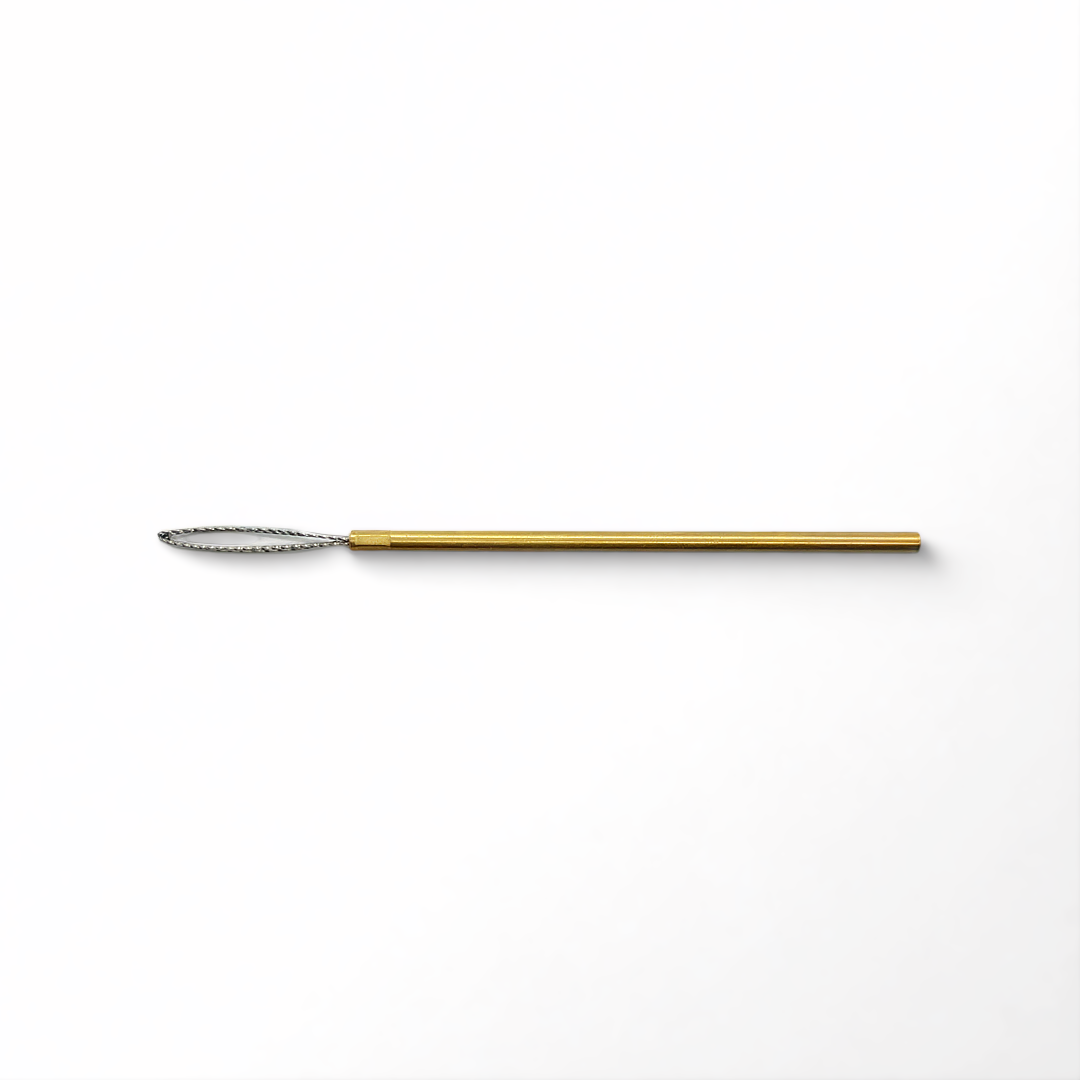

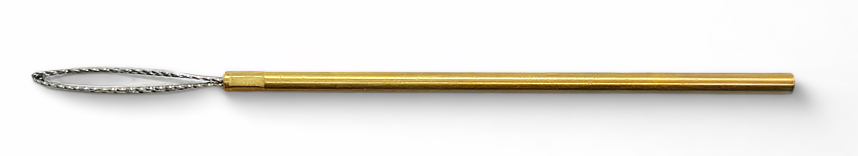

Product Name：VEYER Deburring Lantern Brush
Model:DG series
Main material: bristles : Stainless steel filaments + handle: high-grade alloy steel
Suitable burrs size: below 0.2mm.

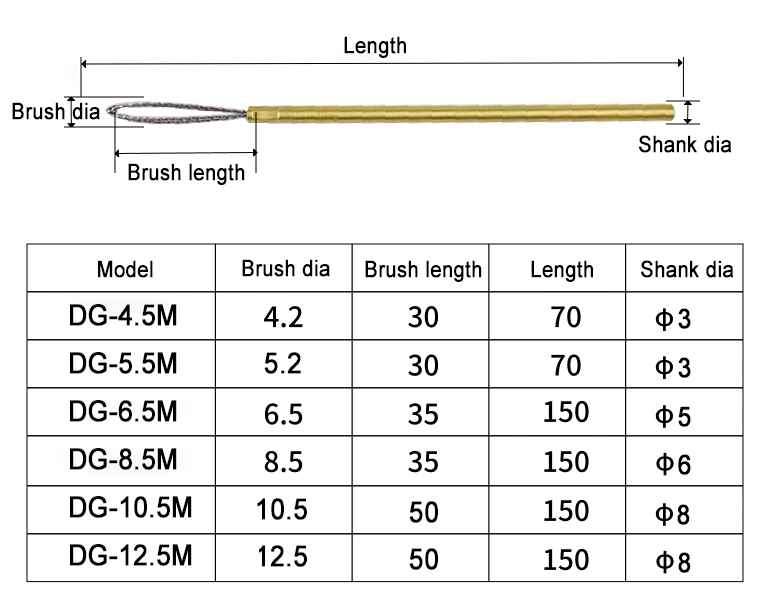

Models & Specifications

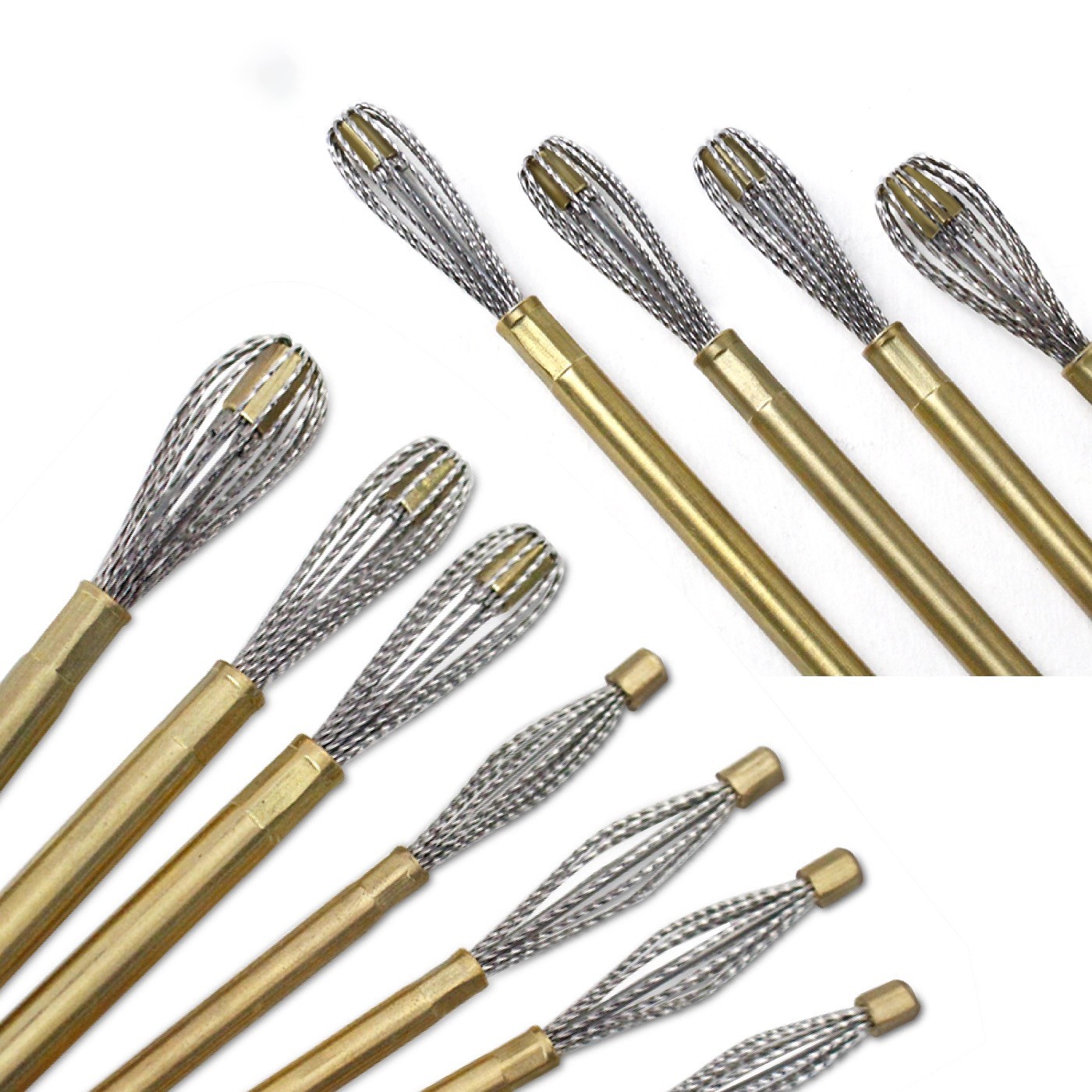

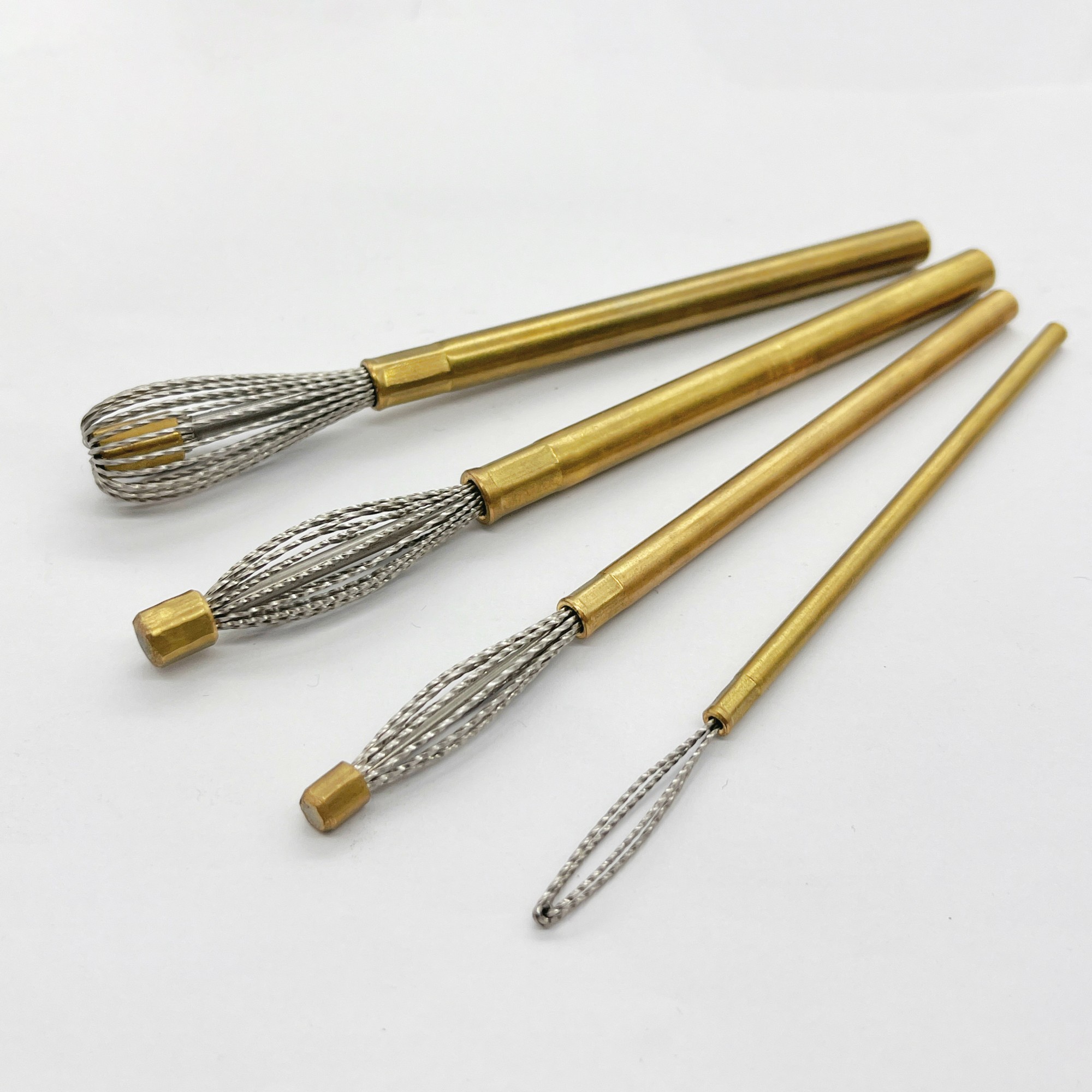

A---VEYER deburring brush sizes range: 4.5mm, 5.5mm, 6.5mm, 8.5mm, 10.5mm, 12.5mm diameter... A size 0.5mm larger than the hole size is generally sufficient.
B---CNC machining parameters: Recommended speed: 600-1200 rpm.
C---Excellent for removing relatively hard burrs. CNC deburring brushes have a higher cutting rate and longer lifespan than ordinary pipe brushes.

F&Q

Q: When will you arrange the production ?
A: Production will be usually arranged immediately after receiving your payment.
Delivery usually about 20-45 days.

Q: Which payment ways I can choose?
A: Usually, T/T, Paypal...If I want to use other ways, kindly share VEYER.

Q: What logistics forwarder do you usually work with?
A: We work with DHL,UPS, FEDEX...& COSCO,MSK,EVERGREEN...

Q: Do you have a MOQ?
A:Our MOQ are usually 100 pcs. (Small QTY are negotiated.) (samples support)
